Skymen Ultrasonic Cleaner for Industrial Cleaning 175 Liters
Skymen 175L Capacity Single Tank Industrial Ultrasonic Cleaner JP-480ST
Please choose the size that fits your needs, or contact us for professional suggestions:
| Model |
JP-360ST |
JP-480ST |
JP-600ST |
JP-720ST |
JP-1108ST |
JP-1144ST |
| Capacity(L) |
135 |
175 |
264 |
360 |
540 |
960 |
| Tank size(MM) |
600*500*450 |
700*500*500 |
800*600*550 |
1000*600*600 |
1000*900*600 |
1200*1000*800 |
| Packing size(MM) |
870*760*805 |
980*755*800 |
1080*860*935 |
1270*870*985 |
1300*1200*1050 |
1500*1300*1250 |
| Frequency(KHz) |
28/40 |
| Ultrasonic power(W) |
0-1800 |
0-2400 |
0-3000 |
0-3600 |
0-5400 |
0-7200 |
| Heating power(W) |
4500 |
6000 |
6000 |
9000 |
18000 |
27000 |
| Timer |
1-99 hour |
| Heater(°C) |
20-95 |
| Material |
SUS304 |
| Features |
Power adjustable, digital control panel, easy operation, with castor and brake, easy to move |
Key Features
- Stainless steel tank has resistance to wear and long work life, with drainage
- Tank capacity: 175 Liter
- Includes stainless steel basket
- Use tap water, or industrial alcohol and solvent cleaner for higher cleaning requirements
- Industrial control chip microcontroller with flexible circuit boards control for secure & stable operation
- Includes drainage, basket, lid and multi-direction castors
- Transducer: Korea technique
- PCB board is independently researched and developed by Skymen
- Suitable for cleaning cast iron, steel, stainless steel, brass, bronze
Packing Information
| Tank Size (LxWxH) |
700*500*500mm |
| Unit Size (LxWxH) |
975*755*810mm |
| Package Size (LxWxH) |
1075x855x940mm (wooden case) |
| N.W./G.W. |
120KG/150KG |
Applications
Electronic factory, utensil, hardware, machinery, communication, biological, medical instrument, glasses, optical, textile, auto parts, ships, aviation, mining area, commercial cleaning. Kitchen industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.
Warranty
1 Year warranty for Skymen ultrasonic cleaner. If any technical problem occurs during warranty period, replacement parts will be sent free of charge. Technical support is also available after 1 year.

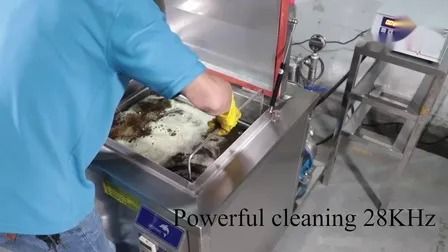

Cleaning Effect
Frequently Asked Questions
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck parts cleaning (remove oils, grease, pastes, etc.). 40kHz is better for PCB boards, electronic parts, etc. Higher precision goods require higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
Q: What cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
Q: Is rinsing required after cleaning cycles?
A: Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.
About Skymen
Skymen Cleaning Equipment Shenzhen Co., Ltd., has been engaged in ultrasonic cleaner field for more than 10 years. Our main products are ultrasonic cleaners with different capacities. Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality products and after-sales services are available from us. Not only standard ultrasonic cleaners, but any non-standard models can be designed by our engineers.
